Layouts

Layouts save your panel arrangements and configurations, allowing you to quickly recreate specific views and share them with your team. They're stored in the cloud and synced across sessions.

What Layouts Save

A layout captures:

  • All panels in layout tabs (Plot, Table, Value, Log, Action, etc.)
  • Panel positions and sizes in the grid
  • Panel settings - Fill area, line styles, display options
  • Signal selections and colors - Which signals and their visualization colors
  • Panel titles - Custom names for each panel

Layouts do NOT include:

  • The actual data (only configuration)
  • Connection settings
  • Time range selections
  • Extension tabs
  • Settings tabs

Manual Saving Only

Layouts are never auto-saved. All changes require explicit save actions via the Save or Save As buttons.

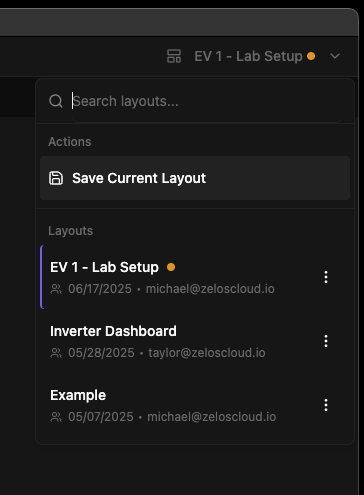

Managing Layouts

Access layouts from the right sidebar (toggle with Cmd+J / Ctrl+J). The Layouts section shows all your personal and shared team layouts.

Creating a Layout

  1. Arrange panels in your workspace exactly as desired
  2. Open the right sidebar (Cmd+J / Ctrl+J)
  3. Click Save As in the Layouts section
  4. Enter a layout name (max 100 characters)
  5. Toggle Personal/Shared:
  6. Personal (👤) - Only visible to you
  7. Shared (👥) - Visible to your entire team
  8. Click Save

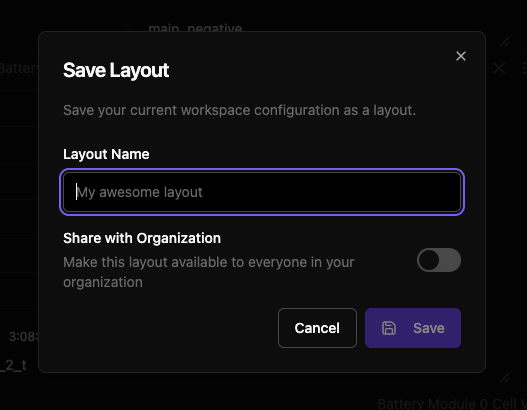

Save Layout

Saving a layout.

Loading a Layout

Click any layout name in the right sidebar to load it. The layout replaces your current panel arrangement.

Recent Tracking

Recently used layouts appear at the top for quick access. The app tracks your last 10 layouts.

Updating a Layout

When you have a layout loaded and make changes:

  1. Notice the modified indicator (amber dot) next to the layout name
  2. Click Save to update the existing layout with your changes
  3. The Save button is only enabled when unsaved changes exist

Alternative: Use Save As to create a new layout instead of overwriting.

Layout Actions

Click the ⋮ menu next to any layout for additional actions:

Rename

  • Edit the layout name inline
  • Press Enter to save, Esc to cancel
  • Click outside to cancel

Share with Team

  • Convert a personal layout to shared
  • Makes it visible to your entire team
  • Only available for personal layouts

Delete

  • Permanently remove the layout
  • Cannot be undone

Visual Indicators

Active Layout

  • Colored left border on the active layout
  • Shows which layout is currently loaded

Modified Indicator

  • Amber dot appears when unsaved changes exist
  • Only shows for the active layout
  • Disappears after saving

Personal vs Shared

  • 👤 icon = Personal layout
  • 👥 icon = Shared layout
  • Shown next to layout name

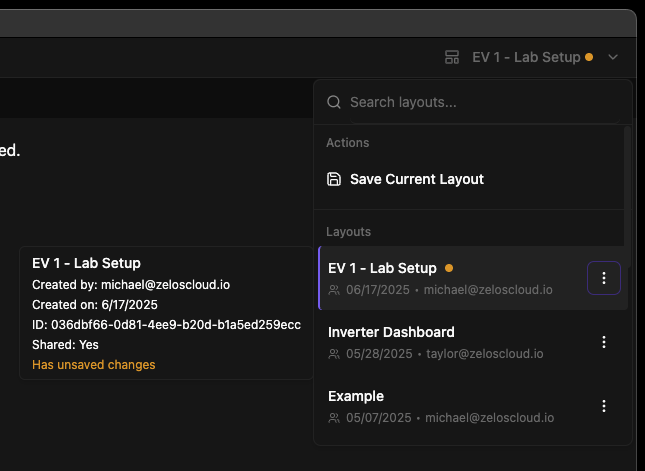

Hover Information

Hover over any layout to see:

  • Layout name
  • Creator email
  • Creation date
  • Layout ID
  • Shared status
  • Unsaved changes status (if applicable)

Search and Filter

The right sidebar search filters layouts by:

  • Layout name
  • Creator email
  • Layout ID

Type in the search box at the top of the right sidebar to filter all layouts.

Keyboard Shortcuts

Action Shortcut
Toggle right sidebar Cmd+J / Ctrl+J
Confirm rename Enter
Cancel rename Esc
Focus search Ctrl+F

Best Practices

Personal Layouts

Use for personal workflows, experiments, and work-in-progress configurations.

Shared Layouts

Create shared layouts for:

  • Standard debugging scenarios
  • Common test configurations
  • Team onboarding views
  • Customer demonstration setups

Naming Conventions

Use descriptive names that indicate:

  • What the layout shows (e.g., "Motor Diagnostics")
  • When to use it (e.g., "Startup Sequence")
  • Who it's for (e.g., "QA Test Suite")
